103V3350F, V-Belt Pulley

103V3350F, 3V33510, 10-3V33.5, 10/3V3350F

103V3350F

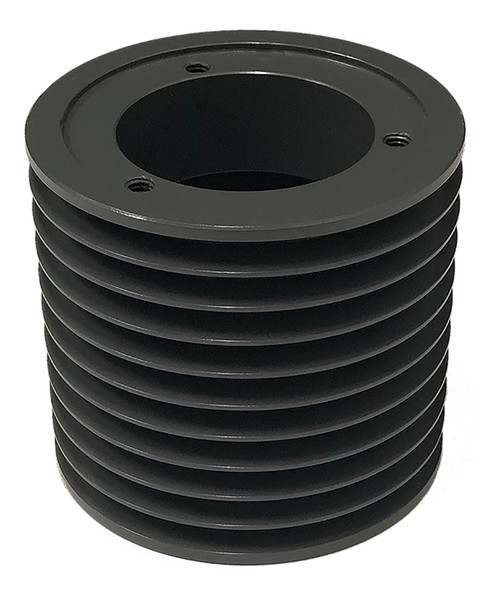

103V3350F, V-Belt Pulley, Cast Iron

Learn more about 103V3350F V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 103V3350F
Type D-3
Material Cast Iron
Bore Type QD
Bore Description Bored for F Bushing
Pitch Diameter (in) 33.450
Outside Diameter (in) 33.500
Face Width (in) 4.000
Min. Bore (in) 1
Unit System Inch
Bushing F
E (in) 0.03125
L (in) 3.75
M (in) 0.625
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 158.00
Part Number Cross Reference QD10/3V33.50, 103V3350F, 3V33.5-10-F, 20180578, 10-3V33.50-F SHEAVE, 3V33510, 10-3V33.50, 103V3350F, 455239, 103V3350F
Grooves 10

Related Products

Comparable to: QD10/3V33.50, 103V3350F, 3V33.5-10-F, 20180578, 10-3V33.50-F SHEAVE, 3V33510, 10-3V33.50, 103V3350F, 455239, 103V3350F
