103V475SK, V-Belt Pulley

103V475SK, 3V47510, 10-3V4.75, 10/3V475SK

Product Details for 103V475SK

Comparable to: QD10/3V4.75, 78730047, 10 3V 475 SK, 1-03V475.SK, 103V475SK, 3V4.75-10-SK, 20180592, 10/3V4.75–SK, 3V47510, 103V4.75, 3V475/10SK, 10-3V4.75, 10-3V47, 10/3V475SK

Click to Enlarge

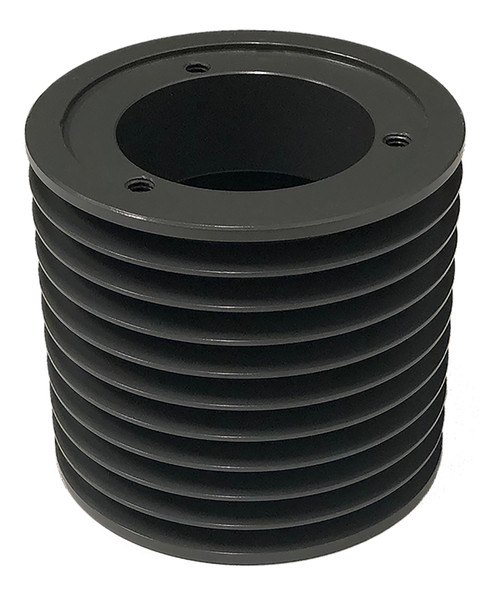

103V475SK, V-Belt Pulley, Cast Iron

Learn more about 103V475SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 103V475SK
Type D1
Material Cast Iron
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 4.700
Outside Diameter (in) 4.750
Face Width (in) 4.000
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
E (in) 21/32
L (in) 1 15/16
M (in) 3 1/16
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 8.30
Part Number Cross Reference QD10/3V4.75, 78730047, 10 3V 475 SK, 1-03V475.SK, 103V475SK, 3V4.75-10-SK, 20180592, 10/3V4.75–SK, 3V47510, 103V4.75, 3V475/10SK, 10-3V4.75, 10-3V47, 10/3V475SK
Grooves 10
