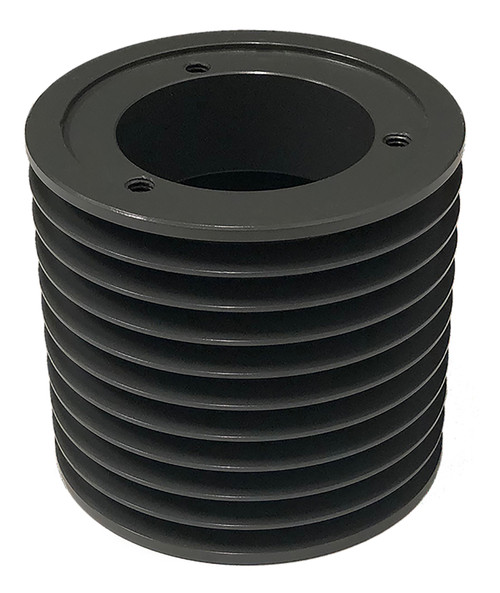

103V500SK, V-Belt Pulley

103V500SK, 3V5010, 10-3V5.0, 10/3V500SK

103V500SK

103V500SK, V-Belt Pulley, Cast Iron

Learn more about 103V500SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 103V500SK
Type D-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 4.950
Outside Diameter (in) 5.000
Face Width (in) 4.000
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
E (in) 0.6562
L (in) 1.9375
M (in) 3.0625
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 9.50
Part Number Cross Reference QD10/3V5.00, 103V500SK, 3V5.0-10-SK PULLEY, 20180600, 10-3V5.00-SK SHEAVE, 3V5010, 10-3V5.00, 103V500SK, 455228, 103V500SK
Grooves 10

Related Products

Comparable to: QD10/3V5.00, 103V500SK, 3V5.0-10-SK PULLEY, 20180600, 10-3V5.00-SK SHEAVE, 3V5010, 10-3V5.00, 103V500SK, 455228, 103V500SK
