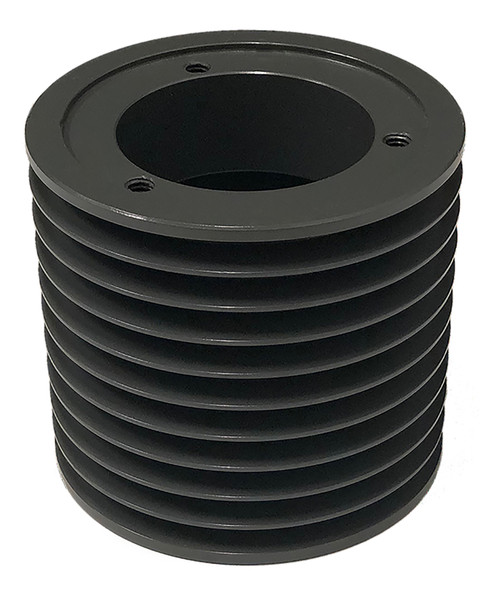

103V530SK, V-Belt Pulley

103V530SK

103V530SK, V-Belt Pulley, Cast Iron

Learn more about 103V530SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	103V530SK
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	5.250
Outside Diameter (in)	5.300
Face Width (in)	4.000
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
E (in)	0.6562
L (in)	1.9375
M (in)	1.75
MOQ	1
Sheave Type	3V
For Belt Type	3V
Weight (lb)	10.20
Part Number Cross Reference	QD10/3V5.30, 103V530SK, 3V5.3-10-SK PULLEY, 20180608, 10-3V5.30-SK SHEAVE, 3V5310, 10-3V5.30, 103V530SK, 455229, 103V530SK
Grooves	10
