103V560SK, V-Belt Pulley

103V560SK, 3V5610, 10-3V5.6, 10/3V560SK

103V560SK

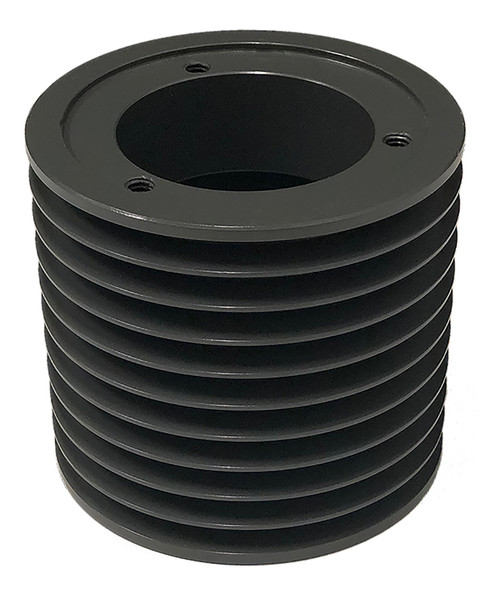

103V560SK, V-Belt Pulley, Cast Iron

Learn more about 103V560SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 103V560SK
Type A-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 5.550
Outside Diameter (in) 5.600
Face Width (in) 4.000
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
E (in) 0.6562
L (in) 1.9375
M (in) 1.75
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 11.40
Part Number Cross Reference QD10/3V5.60, 103V560SK, 3V5.6-10-SK PULLEY, 20180616, 10-3V5.60-SK SHEAVE, 3V5610, 10-3V5.60, 103V560SK, 455230, 103V560SK
Grooves 10

Related Products

Comparable to: QD10/3V5.60, 103V560SK, 3V5.6-10-SK PULLEY, 20180616, 10-3V5.60-SK SHEAVE, 3V5610, 10-3V5.60, 103V560SK, 455230, 103V560SK

Documentation

For custom parts click here
REACH Certification
RoHS Certification
