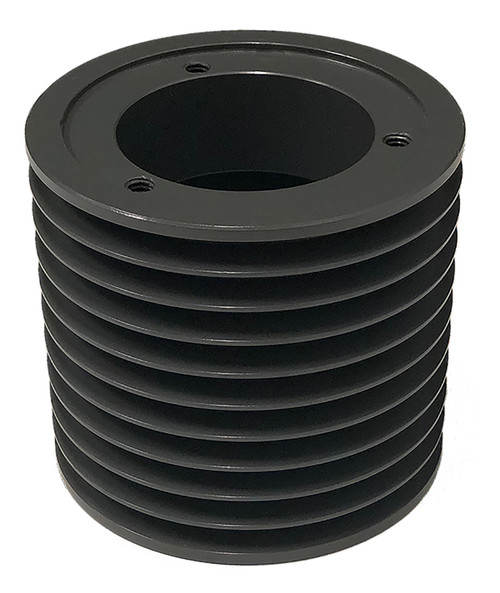

103V600SK, V-Belt Pulley

103V600SK, 3V6010, 10-3V6.0, 10/3V600SK

103V600SK

103V600SK, V-Belt Pulley, Cast Iron

Learn more about 103V600SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 103V600SK
Type A-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 5.950
Outside Diameter (in) 6.000
Face Width (in) 4.000
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
E (in) 0.6562
L (in) 1.9375
M (in) 1.75
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 14.50
Part Number Cross Reference QD10/3V6.00, 103V600SK, 3V6.0-10-SK PULLEY, 20180624, 10-3V6.00-SK SHEAVE, 3V6010, 10-3V6.00, 103V600SK, 455231, 103V600SK
Grooves 10

Related Products

Comparable to: QD10/3V6.00, 103V600SK, 3V6.0-10-SK PULLEY, 20180624, 10-3V6.00-SK SHEAVE, 3V6010, 10-3V6.00, 103V600SK, 455231, 103V600SK
