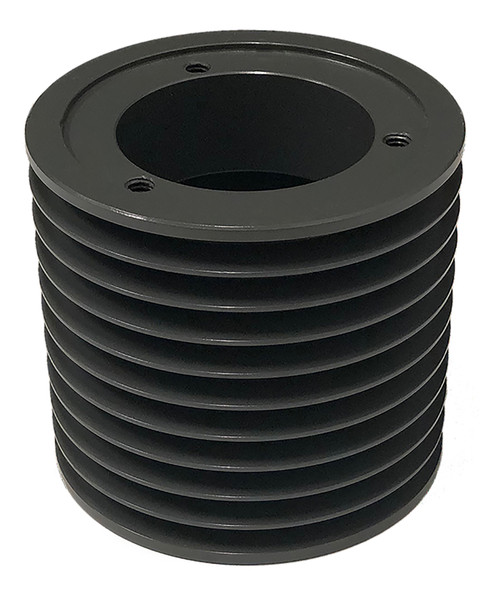

103V800SF, V-Belt Pulley

103V800SF

103V800SF, V-Belt Pulley, Cast Iron

Learn more about 103V800SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	103V800SF
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	7.950
Outside Diameter (in)	8.000
Face Width (in)	4.000
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
E (in)	0.6562
L (in)	2.0625
M (in)	1.625
MOQ	1
Sheave Type	3V
For Belt Type	3V
Weight (lb)	24.00
Part Number Cross Reference	QD10/3V8.00, 103V800SF, 3V8.0-10-SF PULLEY, 20180648, 10-3V8.00-SF SHEAVE, 3V8010, 10-3V8.00, 103V800SF, 455234, 103V800SF
Grooves	10
