10L050-6FA5, Timing Pulley

10L050-6FA5 - Aluminum Imperial Pitch Pulleys

10L050-6FA5

Click to Enlarge

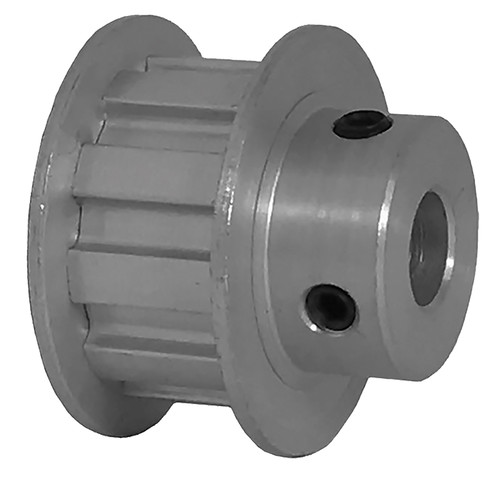

10L050-6FA5, Timing Pulley, Aluminum, Clear Anodized

Learn more about 10L050-6FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 10L050-6FA5
Teeth 10
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 1.194
Outside Diameter (in) 1.164
Flange Diameter (in) 1.438
Face Width (in) 0.719
Overall Length (in) 1.125
Hub Diameter (in) 0.875
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.560
Unit System Inch
P.D. (mm) 30.00
O.D. (mm) 29.60
MOQ 1
Weight (lb) 0.09
Part Number Cross Reference A 6A4-10DF05012, A6A4-10DF05012, 10L050 X 3/8 6FA, PT010J12L08T, 10L050-1A X 3/8, 10L050-6FA5, 10L050-6FA5
Set Screw Quantity 2

Related Products

Comparable to: A 6A4-10DF05012, A6A4-10DF05012, 10L050 X 3/8 6FA, PT010J12L08T, 10L050-1A X 3/8, 10L050-6FA5, 10L050-6FA5
