10MP012M6CA3 Metric Pulleys

10MP012M6CA3, A6N16M010DF3003, A 6N16M010DF3003, TP7A3MW2-10

Product Details for 10MP012M6CA3

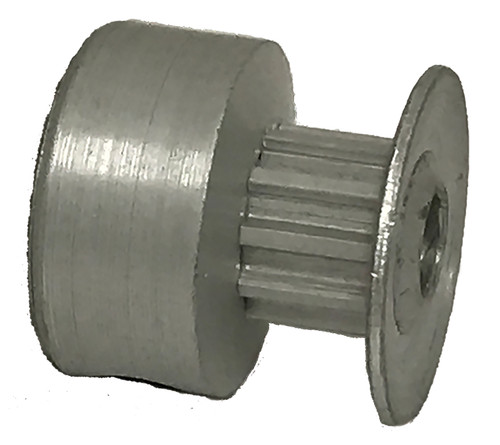

10MP012M6CA3, Timing Pulley, Powerhouse Timing, 3 mm Bore, Aluminum

Specifications

Product Number 10MP012M6CA3
Teeth 10
Tooth Style MXL
For Belt Width (in) 0.125
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 3.00
Set Screw 1 x M2
Pulley Belt Width (mm) 4.00
Unit System Metric
P.D. (mm) 6.50
O.D. (mm) 6.00
Flange Diameter (mm) 10.80
Overall Length (mm) 11.10
Hub Diameter (mm) 10.80
Weight (lb) 0.02
List Price (1-9 Qty.) (USD) 7.95
Discount Price (10-24 Qty.) (USD) 7.36
Discount Price (25-49 Qty.) (USD) 5.76
Discount Price (50-99 Qty.) (USD) 4.97
Discount Price (100-249 Qty.) (USD) 4.57
Part Number Cross Reference 10MP012M6CA3, A6N16M010DF3003, A 6N16M010DF3003, TP7A3MW2-10

Documentation

Download Catalog 2015_BBMAN_CATALOG_7.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 10MP012M6CA3_REACH_cert
RoHS Certification 10MP012M6CA3_RoHS_cert
