10MP025-6CA1, Timing Pulley

10MP025-6CA1, A6A16-010DF2504, A 6A16-010DF2504, PB10MXL025, 10MP-025 1/8 6FC, PT010A04L04R, TP7A2W4-10, 10MXL025-6A X 1/8, 1375K29

Product Details for 10MP025-6CA1

Comparable to: 10MP025-6CA1, A 6A16-010DF2504, A6A16-010DF2504, PB10MXL025, 10MP-025 1/8 6FC, PT010A04L04R, TP7A2W4-10, 10MXL025-6A X 1/8, 1375K

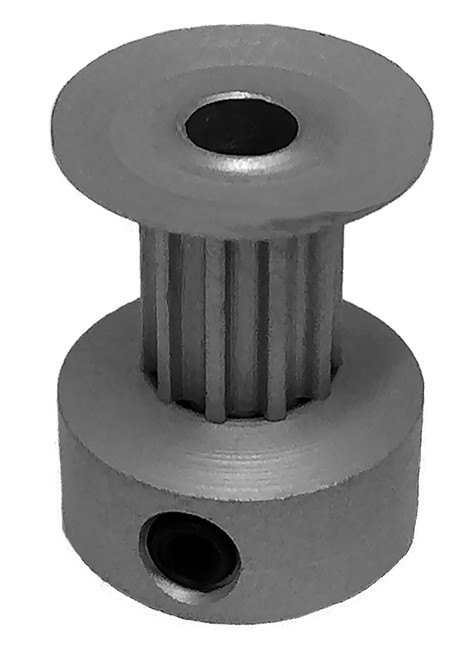

10MP025-6CA1, Timing Pulley, Powerhouse Timing, 1/8 Inch Bore, Aluminum

Learn more about 10MP025-6CA1 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 10MP025-6CA1
Teeth 10
Tooth Style MXL
For Belt Width (in) 0.250
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/8 Inch Finished Bore
Pitch Diameter (in) 0.255
Outside Diameter (in) 0.235
Flange Diameter (in) 0.425
Face Width (in) 0.330
Overall Length (in) 0.563
Hub Diameter (in) 0.425
Set Screw 1 x 4-40
Min. Bore (in) 0.125
Pulley Belt Width (in) 0.290
Unit System Inch
Max. Bore (in) 0.175
Weight (lb) 0.02
Part Number Cross Reference 10MP025-6CA1, A 6A16-010DF2504, A6A16-010DF2504, PB10MXL025, 10MP-025 1/8 6FC, PT010A04L04R, TP7A2W4-10, 10MXL025-6A X 1/8, 1375K
