10XL025-6FA2, Timing Pulley

10XL025-6FA2 - Aluminum Imperial Pitch Pulleys

10XL025-6FA2

Click to Enlarge

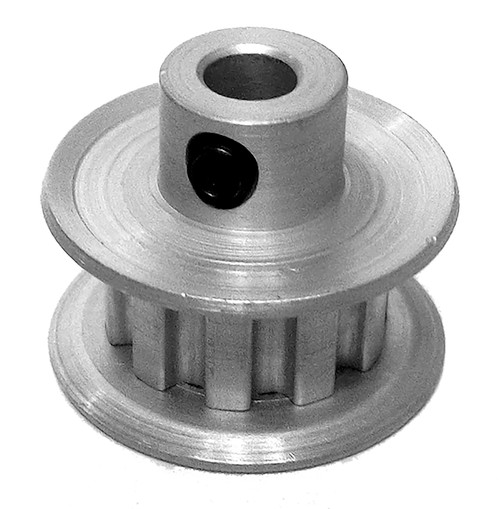

10XL025-6FA2, Timing Pulley, Aluminum, Clear Anodized

Learn more about 10XL025-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 10XL025-6FA2
Teeth 10
Tooth Style XL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.188
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.637
Outside Diameter (in) 0.617
Flange Diameter (in) 0.875
Face Width (in) 0.438
Overall Length (in) 0.688
Hub Diameter (in) 0.375
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.310
Unit System Inch
P.D. (mm) 16.00
O.D. (mm) 15.70
Flange Diameter (mm) 22.23
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A3-10DF02506, A6A3-10DF02506, PB10XL025, 10XL025 X 3/16 6F, PT010D06L04T, TP20A3W4-10, 10XL025-1A X 3/16, 10XL025-6FA2, 10XL025-6FA2
Set Screw Quantity 1

Related Products

Comparable to: A 6A3-10DF02506, A6A3-10DF02506, PB10XL025, 10XL025 X 3/16 6F, PT010D06L04T, TP20A3W4-10, 10XL025-1A X 3/16, 10XL025-6FA2, 10XL025-6FA2
