11-3M-PS3A, Timing Pulley Stock

11-3M-PS3A

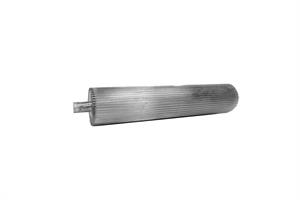

11-3M-PS3A, Timing Pulley Stock, Aluminum, Clear Anodized

Learn more about 11-3M-PS3A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	11-3M-PS3A
Teeth	11
Tooth Style	HTD3mm
Material	Aluminum
Pitch Diameter (in)	0.414
Outside Diameter (in)	0.384
Overall Length (in)	3.750
Unit System	Inch
Min. Usable Length (in)	3.000
P.D. (mm)	10.50
O.D. (mm)	9.80
MOQ	1
Weight (lb)	0.03
Part Number Cross Reference	A 6A22M011TM08, A6A22M011TM08, 11-3M-PS-3A, 3M 11, 11-3M-P-3A, 11-3M-PS3A, 11-3M-PS3A
Shank Length (in)	0.7500
