11-3M09-6CA1 Powerhouse™ Htd® Pulleys

11-3M09-6CA1

Product Details for 11-3M09-6CA1

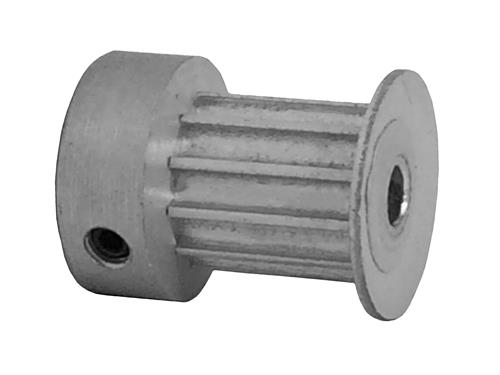

11-3M09-6CA1, Timing Pulley, Teeth;11 | Pitch;HTD 3mm | For Belt Width;9 mm | Configuration;Standard Hub Serves as 2nd Flange and 1 Flange | Bore Size;0.125 inch | Material;Clear Anodized Aluminum

Specifications

Product Number 11-3M09-6CA1
Teeth 11
Tooth Style HTD 3mm
For Belt Width (mm) 9.000
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.125
Pitch Diameter (in) 0.414
Outside Diameter (in) 0.384
Flange Diameter (in) 0.530
Face Width (in) 0.446
Overall Length (in) 0.681
Hub Diameter (in) 0.530
Set Screw 1 x 4-40
Min. Bore (in) 0.125
Pulley Belt Width (in) 0.400
Unit System Inch
Weight (lb) 0.02
List Price (1-9 Qty.) (USD) $11.69
Discount Price (10-24 Qty.) (USD) $11.11
Discount Price (25-49 Qty.) (USD) $9.36
Discount Price (50-99 Qty.) (USD) $7.31
Discount Price (100-249 Qty.) (USD) $6.43
Part Number Cross Reference A 6A23-011DF0904 P11-3M-09AL 78821087 PT011F04L09R
