112-8MX21-2517, Timing Pulley

112-8MX21-2517 - Cast Iron Powerhouse® MX Pulleys

112-8MX21-2517

Click to Enlarge

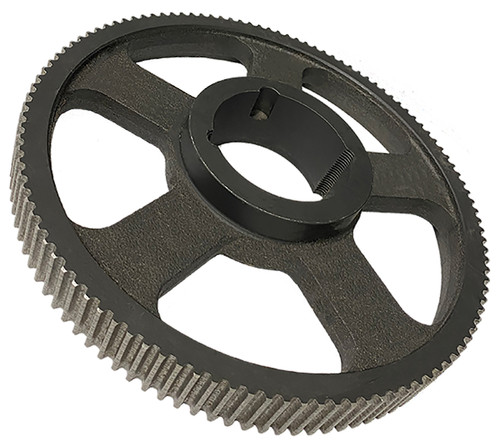

112-8MX21-2517, Timing Pulley, Cast Iron, Black Oxide

Learn more about 112-8MX21-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 112-8MX21-2517
Teeth 112
Tooth Style 8MX
For Belt Width (mm) 21.00
Type C-2
Material Ductile Iron
Finish Black Oxide
Bore Type TL
Bore Description Bored for 2517 Bushing
Pitch Diameter (in) 11.229
Outside Diameter (in) 11.166
Face Width (in) 1.203
Overall Length (in) 1.750
Min. Bore (in) 0.5
Unit System Inch
Bushing 2517
P.D. (mm) 285.00
O.D. (mm) 283.60
MOQ 1
Weight (lb) 14.11
Part Number Cross Reference 8MX-112S-21, B8MCS-112-21, 112G-8M-21-2517, 20839766, 8MX-112S-21-2517 HT500 SPKT, 8MPC112S21, 112-8MX21-2517, 481946, 112-8MX21-2517

Related Products

Comparable to: 8MX-112S-21, B8MCS-112-21, 112G-8M-21-2517, 20839766, 8MX-112S-21-2517 HT500 SPKT, 8MPC112S21, 112-8MX21-2517, 481946, 112-8MX21-2517
