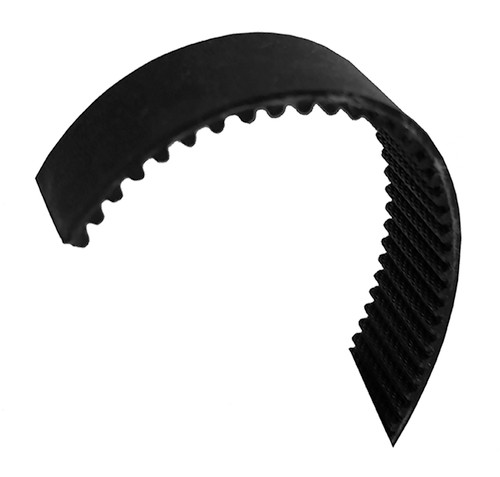

1136-8M-20 Powerhouse™ HTD® Belts
1136-8M-20, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass
Specifications
| Product Number | 1136-8M-20 |
| Teeth | 142 |
| Tooth Style | HTD 8mm |
| Unit System | Metric |
| Belt Type | Single Sided |
| Belt Width (mm) | 20.00 |
| Pitch Length (mm) | 1,136.00 |
| Construction | Neoprene |
| Reinforcement | Fiberglass |
| Part Number Cross Reference | 1136-8M-20, B11368M20, 11368M |
Documentation
| Download Catalog | 2015_BBMAN_CATALOG_225.pdf |
| General Characteristics | gen_char.html |
| Pulley Tolerances | pulley_tol.html |
| TruMotion Features | trumotionsyncdata_final_3-8-07.pdf |
| Belt Tensile Properties | trumotionsyncdata_final_3-8-07.pdf |
| For custom parts click here | custom.html |
| REACH Certification | 1136-8M-20_REACH_cert |
| RoHS Certification | 1136-8M-20_RoHS_cert |
