11MP012M6CA3 Metric Pulleys

11MP012M6CA3, A6N16M011DF3003, A 6N16M011DF3003, TP7A3MW2-11

Product Details for 11MP012M6CA3

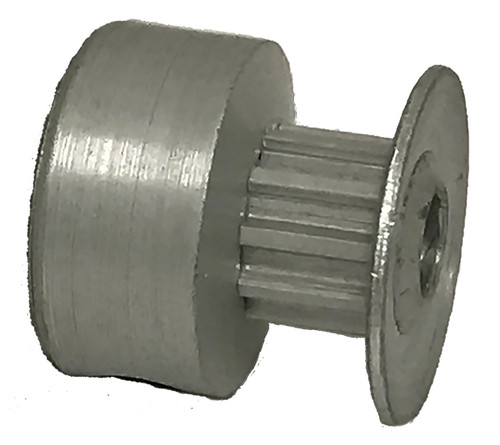

11MP012M6CA3, Timing Pulley, Powerhouse Timing, 3 mm Bore, Aluminum

Specifications

Product Number 11MP012M6CA3
Teeth 11
Tooth Style MXL
For Belt Width (in) 0.125
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 3.00
Set Screw 1 x M2
Pulley Belt Width (mm) 4.00
Unit System Metric
P.D. (mm) 7.10
O.D. (mm) 6.60
Flange Diameter (mm) 11.40
Overall Length (mm) 11.10
Hub Diameter (mm) 11.40
Weight (lb) 0.02
Discount Price (10-24 Qty.) (USD) 7.57
Discount Price (25-49 Qty.) (USD) 5.94
Discount Price (50-99 Qty.) (USD) 5.12
Discount Price (100-249 Qty.) (USD) 4.71
Part Number Cross Reference 11MP012M6CA3, A6N16M011DF3003, A 6N16M011DF3003, TP7A3MW2-11

Documentation

Download Catalog 2015_BBMAN_FULL_CATALOG_7.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
