11MP025M6CA3 Metric Pulleys

11MP025M6CA3

Product Details for 11MP025M6CA3

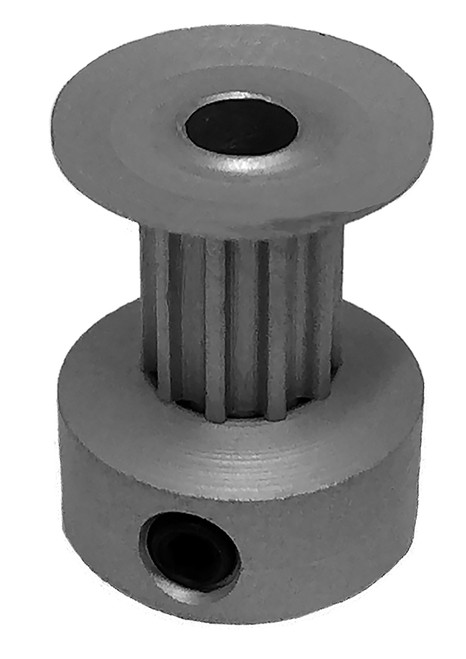

11MP025M6CA3, Timing Pulley, Teeth;11 | Pitch;MXL | For Belt Width;0.25 inch | Configuration;Standard Hub Serves as 2nd Flange and 1 Flange | Bore Size;3 mm | Material;Clear Anodized Aluminum

Specifications

Product Number 11MP025M6CA3
Teeth 11
Tooth Style MXL
For Belt Width (in) 0.250
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 3.00
Set Screw 1 x M2
Pulley Belt Width (mm) 7.20
Unit System Inch
P.D. (mm) 7.10
O.D. (mm) 6.60
Flange Diameter (mm) 11.40
Overall Length (mm) 14.30
Hub Diameter (mm) 11.40
Weight (lb) 0.02
List Price (1-9 Qty.) (USD) $7.55
Discount Price (10-24 Qty.) (USD) $6.99
Discount Price (25-49 Qty.) (USD) $5.10
Discount Price (50-99 Qty.) (USD) $4.53
Discount Price (100-249 Qty.) (USD) $4.15
Part Number Cross Reference A6A16M011DF6003 A 6A16M011DF6003
