12L050-6FS5, Timing Pulley

12L050-6FS5

Click to Enlarge

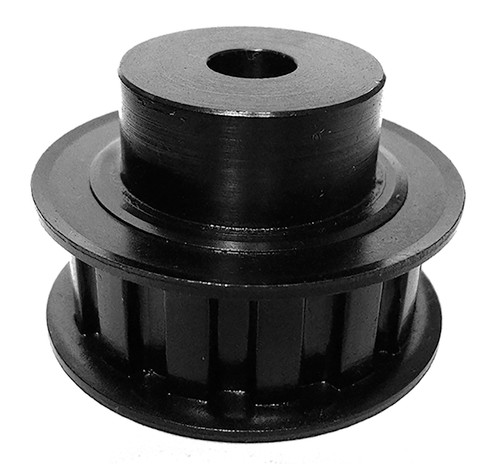

12L050-6FS5, Timing Pulley, Steel, Black Oxide

Learn more about 12L050-6FS5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	12L050-6FS5
Teeth	12
Tooth Style	L
For Belt Width (in)	0.5000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.375
Bore Description	3/8 Inch Minimum Plain Bore
Pitch Diameter (in)	1.432
Outside Diameter (in)	1.402
Flange Diameter (in)	1.656
Face Width (in)	0.750
Overall Length (in)	1.250
Hub Diameter (in)	1.000
Min. Bore (in)	0.375
Pulley Belt Width (in)	0.570
Unit System	Inch
P.D. (mm)	36.00
O.D. (mm)	35.60
MOQ	1
Weight (lb)	0.43
Part Number Cross Reference	A 6C4-12DFB5012, A6C4-12DFB5012, PB12L050, 12L050, 12LB050, 12L050-3/8, 20181886, 12L050 X 3/8 MPB, 12L050, 12L050MPB, P12L050, 6495K24, 35376029, P12L050-PB, 12L050-6FS5, 113451, 12L050-6FS5
