Product Details for 12MP025-IA1

Comparable to: 12MP025-IA1, A 6D16-012DF2504, A6D16-012DF2504

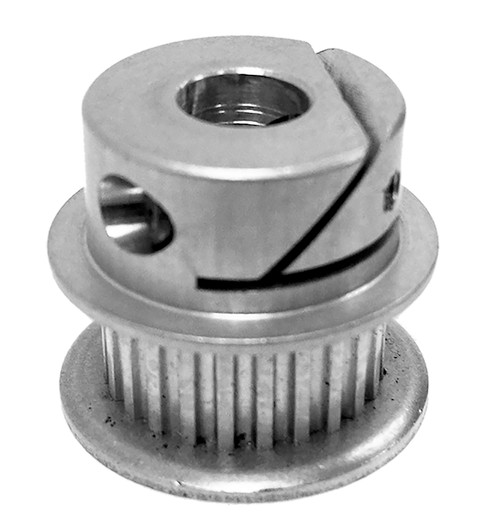

12MP025-IA1, Timing Pulley, Powerhouse Timing, 1/8 Inch Bore, Aluminum, E-Z Lock Hub

Our 12MP025-IA1 E-Z Lock Hub Aluminum Imperial Pitch Pulleys are made from the highest quality materials & can meet any company's needs . Contact B&B Manufacturing today for a quote!

Specifications

Product Number 12MP025-IA1
Teeth 12
Tooth Style MXL
For Belt Width (in) 0.250
Type 6CI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/8 Inch Finished Bore
Pitch Diameter (in) 0.306
Outside Diameter (in) 0.286
Flange Diameter (in) 0.480
Face Width (in) 0.330
Overall Length (in) 0.563
Hub Diameter (in) 0.480
Min. Bore (in) 0.125
Unit System Inch
Max. Bore (in) 0.125
Number & Screw Size 1 x 2-56
Weight (lb) 0.02
Part Number Cross Reference 12MP025-IA1, A 6D16-012DF2504, A6D16-012DF2504
