12T5-PS125A, Timing Pulley Stock

12T5-PS125A, A6A34M012T12, A 6A34M012T12, 12T5-PS-125

Product Details for 12T5-PS125A

Comparable to: A 6A34M012T12, A6A34M012T12, 12T5-PS-125, T512

Click to Enlarge

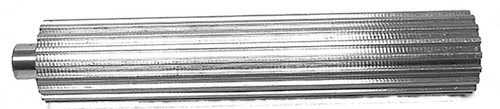

12T5-PS125A, Timing Pulley Stock, Aluminum, Clear Anodized

Learn more about 12T5-PS125A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 12T5-PS125A
Teeth 12
Tooth Style T5mm
Material Aluminum
Finish Clear Anodized
Pitch Diameter (in) 0.758
Outside Diameter (in) 0.719
Overall Length (in) 5.700
Unit System Metric
Min. Usable Length (in) 4.900
P.D. (mm) 19.30
O.D. (mm) 18.30
Min. Usable Length (mm) 125.00
Overall Length (mm) 150.00
MOQ 1
Weight (lb) 0.18
Part Number Cross Reference A 6A34M012T12, A6A34M012T12, 12T5-PS-125, T512
Shank Length (in) 0.8000
