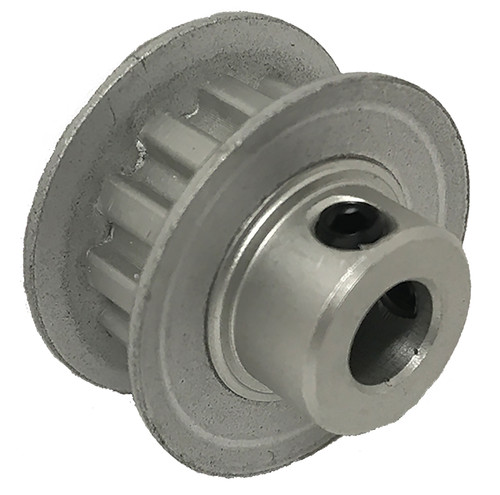

12XL025-6FA3, Timing Pulley

12XL025-6FA3 - Aluminum Imperial Pitch Pulleys

12XL025-6FA3

12XL025-6FA3 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

12XL025-6FA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 12XL025-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 12XL025-6FA3
Teeth 12
Tooth Style XL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.764
Outside Diameter (in) 0.744
Flange Diameter (in) 1.000
Face Width (in) 0.438
Overall Length (in) 0.688
Hub Diameter (in) 0.500
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.310
Unit System Inch
P.D. (mm) 19.00
O.D. (mm) 18.90
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 12XL025-6FA3
Set Screw Quantity 2
