13L050-6FS5, Timing Pulley

13L050-6FS5 - Steel Imperial Pitch Pulleys

Product Details for 13L050-6FS5

Comparable to: 13L050-6FS5, A 6C4-13DFB5012, A6C4-13DFB5012, PB13L050, 78231523, 1144

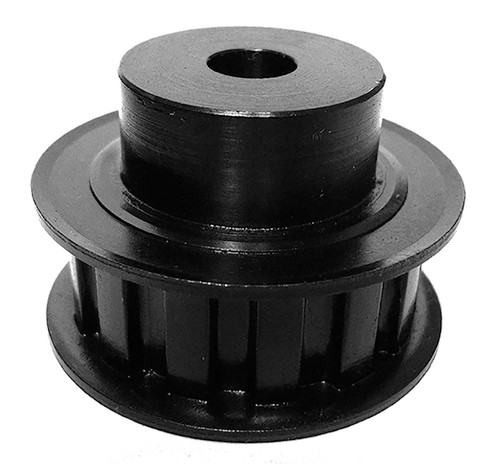

13L050-6FS5, Timing Pulley, Steel, Black Oxide

Learn more about 13L050-6FS5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 13L050-6FS5
Teeth 13
Tooth Style L
For Belt Width (in) 0.500
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 3/8 Inch Minimum Plain Bore
Pitch Diameter (in) 1.552
Outside Diameter (in) 1.522
Flange Diameter (in) 1.781
Face Width (in) 0.750
Overall Length (in) 1.250
Hub Diameter (in) 1.125
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.570
Unit System Inch
Max. Bore (in) 0.875
Weight (lb) 0.50
Part Number Cross Reference 13L050-6FS5, A 6C4-13DFB5012, A6C4-13DFB5012, PB13L050, 78231523, 1144
