13V280JA, V-Belt Pulley

13V280JA, 3V2.8-1-JA, 20180551, 3V281, 1-3V2.8, 1/3V280JA

Product Details for 13V280JA

Comparable to: 13V280JA, QD1/3V2.80, 3V2.8-1-JA, 20180551, 3V281, 1-3V2.8, 1/3V280

Click to Enlarge

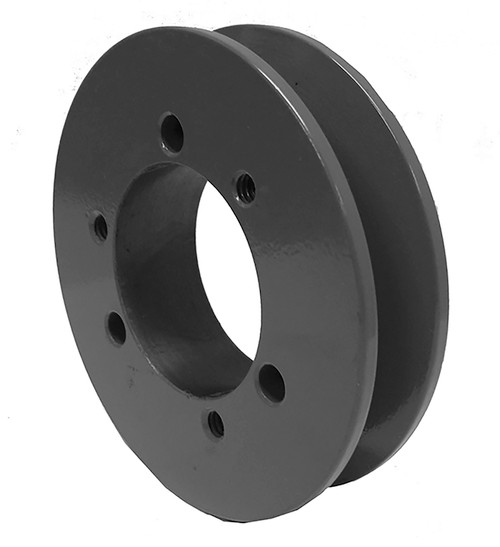

13V280JA, V-Belt Pulley, Cast Iron

Learn more about 13V280JA V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 13V280JA
Type D1
Material Cast Iron
Bore Type QD
Bore (in) JA
Pitch Diameter (in) 2.750
Outside Diameter (in) 2.800
Face Width (in) 0.688
Min. Bore (in) 0.500
Unit System Inch
Bushing JA
Max. Bore (in) 1.250
For Belt Type 3V
Weight (lb) 0.70
Part Number Cross Reference 13V280JA, QD1/3V2.80, 3V2.8-1-JA, 20180551, 3V281, 1-3V2.8, 1/3V280
