13V690SH, V-Belt Pulley

13V690SH, 3V6.9-1-SH, 20180641, 3V691, 1-3V6.9, 1/3V690SH

Product Details for 13V690SH

Comparable to: 13V690SH, QD1/3V6.90, 3V6.9-1-SH, 20180641, 3V691, 1-3V6.9, 1/3V690

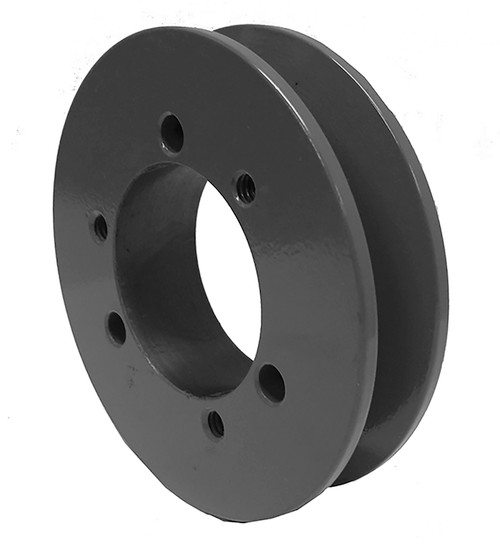

13V690SH, V-Belt Pulley, Cast Iron

Learn more about 13V690SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 13V690SH
Type D3
Material Cast Iron
Bore Type QD
Bore (in) SH
Pitch Diameter (in) 6.850
Outside Diameter (in) 6.900
Face Width (in) 0.688
Min. Bore (in) 0.500
Unit System Inch
Bushing SH
Max. Bore (in) 1.6875
For Belt Type 3V
Weight (lb) 4.40
Part Number Cross Reference 13V690SH, QD1/3V6.90, 3V6.9-1-SH, 20180641, 3V691, 1-3V6.9, 1/3V690
