14XL037-6FS4, Timing Pulley

14XL037-6FS4 - Steel Imperial Pitch Pulleys

14XL037-6FS4

Click to Enlarge

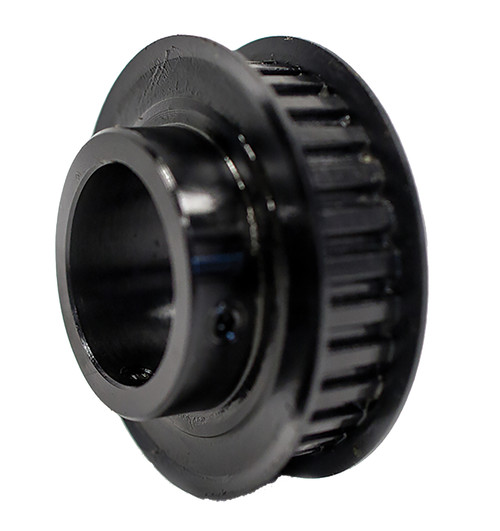

14XL037-6FS4, Timing Pulley, Steel, Black Oxide

Learn more about 14XL037-6FS4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 14XL037-6FS4
Teeth 14
Tooth Style XL
For Belt Width (in) 0.3750
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 5/16 Inch Minimum Plain Bore
Pitch Diameter (in) 0.891
Outside Diameter (in) 0.871
Flange Diameter (in) 1.094
Face Width (in) 0.563
Overall Length (in) 0.812
Hub Diameter (in) 0.563
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 23.00
O.D. (mm) 22.10
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference A 6C3-14DF03710, A6C3-14DF03710, 14XL037-1S X 5/16, 14XL037-6FS4
Set Screw Quantity 2
