15-5P09-6FA3, Timing Pulley

15-5P09-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 15-5P09-6FA3

Comparable to: A 6A55-015DF0908, A6A55-015DF0908, P15-5MGT-09AL, 78450915

Click to Enlarge

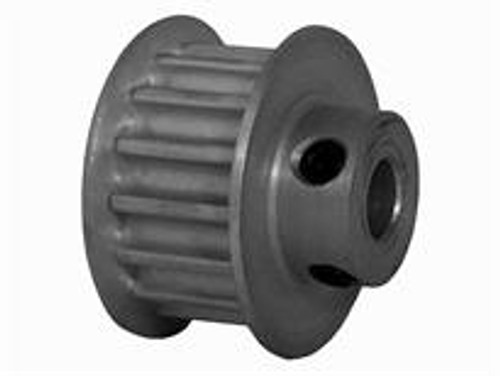

15-5P09-6FA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 15-5P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 15-5P09-6FA3
Teeth 15
Tooth Style 5P
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.940
Outside Diameter (in) 0.895
Flange Diameter (in) 1.063
Face Width (in) 0.546
Overall Length (in) 0.796
Hub Diameter (in) 0.563
Min. Bore (in) 0.250
Unit System Inch
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference A 6A55-015DF0908, A6A55-015DF0908, P15-5MGT-09AL, 78450915
Set Screw Quantity 2
