16-3P09-6CA2, Timing Pulley

16-3P09-6CA2 - Aluminum Powerhouse® Pulleys

16-3P09-6CA2

Click to Enlarge

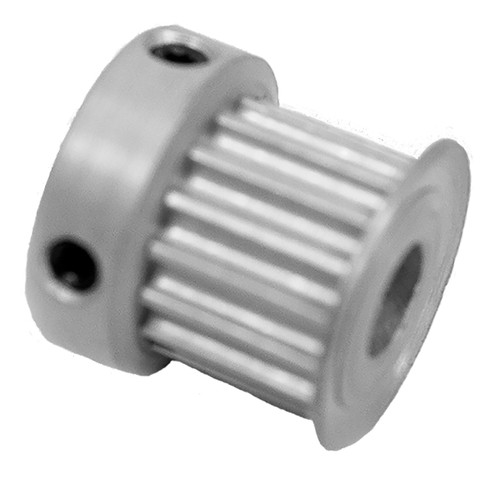

16-3P09-6CA2, Timing Pulley, Aluminum, Clear Anodized

Learn more about 16-3P09-6CA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 16-3P09-6CA2
Teeth 16
Tooth Style 3P
For Belt Width (mm) 9.00
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.188
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.602
Outside Diameter (in) 0.572
Flange Diameter (in) 0.710
Face Width (in) 0.453
Overall Length (in) 0.691
Hub Diameter (in) 0.710
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.400
Unit System Inch
P.D. (mm) 15.00
O.D. (mm) 14.50
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A53-016DF0906, A6A53-016DF0906, 3MR-16S-09, 3MR-16S-09-6F, TP3A2W9-16, 16-3GT09-6A X 3/16, 16-3P09-6CA2, 16-3P09-6CA2
Set Screw Quantity 2

Comparable to: A 6A53-016DF0906, A6A53-016DF0906, 3MR-16S-09, 3MR-16S-09-6F, TP3A2W9-16, 16-3GT09-6A X 3/16, 16-3P09-6CA2, 16-3P09-6CA2

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
