16-5P15-6FA3, Timing Pulley

16-5P15-6FA3

Click to Enlarge

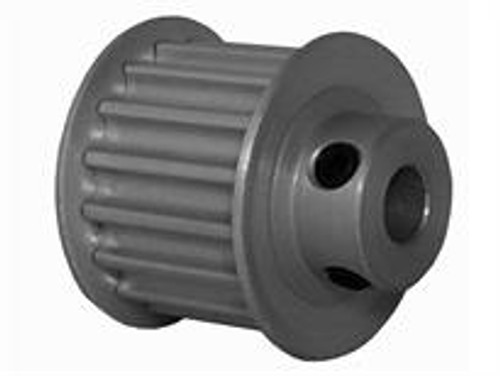

16-5P15-6FA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 16-5P15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	16-5P15-6FA3
Teeth	16
Tooth Style	5P
For Belt Width (mm)	15.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.003
Outside Diameter (in)	0.958
Flange Diameter (in)	1.094
Face Width (in)	0.781
Overall Length (in)	1.031
Hub Diameter (in)	0.563
Min. Bore (in)	0.25
Unit System	Inch
P.D. (mm)	26.00
O.D. (mm)	24.30
MOQ	1
Weight (lb)	0.08
Part Number Cross Reference	A 6A55-016DF1508, A6A55-016DF1508, P16-5MGT-15AL, 16-5P15-6FA3, 16-5P15-6FA3
Set Screw Quantity	2
