16-T10-FS Flanges

16-T10-FS

Product Details for 16-T10-FS

Comparable to: 16-T10-FS,

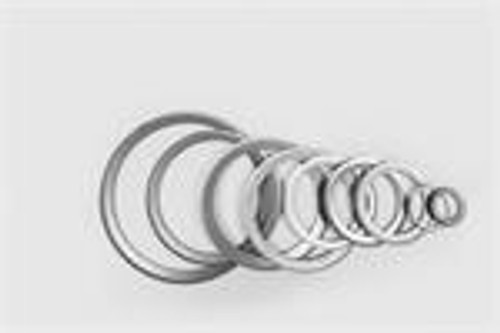

16-T10-FS, Timing Pulley Flange, Powerhouse Timing, Steel, Flange

Specifications

Product Number 16-T10-FS
Tooth Style AT10mm/T10mm
Material Steel
Outside Diameter (in) 2.126
Unit System Metric
O.D. (mm) 54.00
I.D. (in) 1.693
Stock Thickness (T) (in) 0.059
Overall Thickness (W) (in) 0.09
Weight (lb) 0.03
List Price (1-9 Qty.) (USD) 4.35
Discount Price (10-24 Qty.) (USD) 3.26
Discount Price (25-49 Qty.) (USD) 2.18
Discount Price (50-99 Qty.) (USD) 1.52
Discount Price (100-249 Qty.) (USD) 1.44
Part Number Cross Reference 16-T10-FS,

Documentation

Download Catalog 2015_BBMAN_CATALOG_288.pdf
Standard Flange Tolerances flangetolerances.pdf
For custom parts click here custom.html
REACH Certification 16-T10-FS_REACH_cert
RoHS Certification 16-T10-FS_RoHS_cert
