16L050-6FS6, Timing Pulley

16L050-6FS6 - Steel Imperial Pitch Pulleys

16L050-6FS6

Click to Enlarge

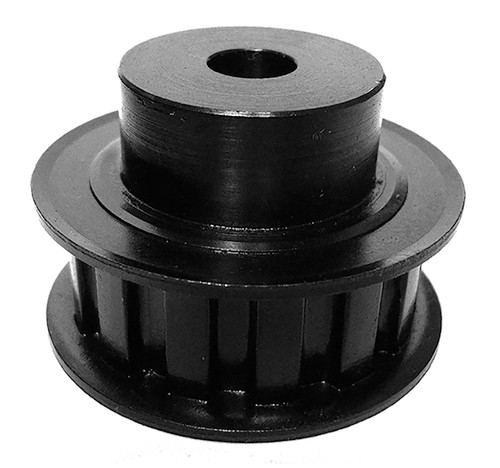

16L050-6FS6, Timing Pulley, Steel, Black Oxide

Learn more about 16L050-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 16L050-6FS6
Teeth 16
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.500
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 1.910
Outside Diameter (in) 1.880
Flange Diameter (in) 2.125
Face Width (in) 0.750
Overall Length (in) 1.250
Hub Diameter (in) 1.437
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.570
Unit System Inch
P.D. (mm) 48.00
O.D. (mm) 47.70
MOQ 1
Weight (lb) 0.76
Part Number Cross Reference A 6C4-16DFB5016, A6C4-16DFB5016, PB16L050, 16L050, 16LB050, 16L050-1/2 MPB, 20181906, 16L050 X 1/2 MPB, 16L050, 16L050MPB, P16L050, 6495K15, 35376110, P16L050-PB, 16L050-6FS6, 113453, 16L050-6FS6

Comparable to: A 6C4-16DFB5016, A6C4-16DFB5016, PB16L050, 16L050, 16LB050, 16L050-1/2 MPB, 20181906, 16L050 X 1/2 MPB, 16L050, 16L050MPB, P16L050, 6495K15, 35376110, P16L050-PB, 16L050-6FS6, 113453, 16L050-6FS6
