16MP025M6CA4, Timing Pulley

16MP025M6CA4 - Aluminum Metric Pulleys

Product Details for 16MP025M6CA4

Comparable to: 16MP025M6CA4, A 6A16M016DF6004, A6A16M016DF6004

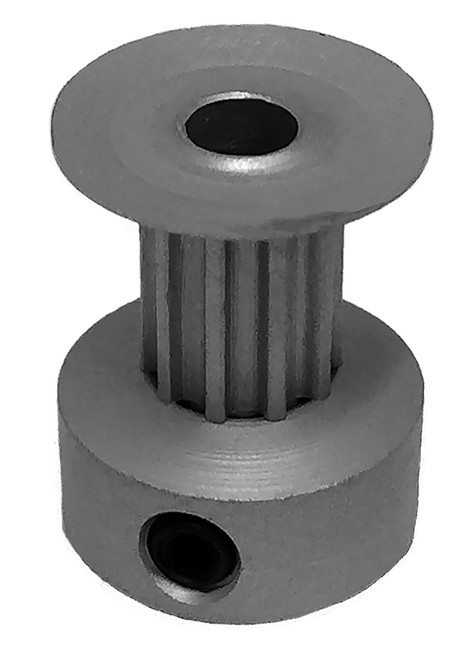

16MP025M6CA4, Timing Pulley, Aluminum, Clear Anodized

Learn more about 16MP025M6CA4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 16MP025M6CA4
Teeth 16
Tooth Style MXL
For Belt Width (in) 0.250
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 4.00
Face Width (in) 0.330
Set Screw 1 x M2.5
Pulley Belt Width (mm) 7.20
Unit System Metric
P.D. (mm) 10.30
O.D. (mm) 9.80
Flange Diameter (mm) 14.70
Overall Length (mm) 14.30
Hub Diameter (mm) 14.70
Weight (lb) 0.01
Part Number Cross Reference 16MP025M6CA4, A 6A16M016DF6004, A6A16M016DF6004
