18-5M15-6A3, Timing Pulley

18-5M15-6A3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 18-5M15-6A3

Comparable to: A 6A25-018NF1508, A6A25-018NF1508, PT018G08L15N

Click to Enlarge

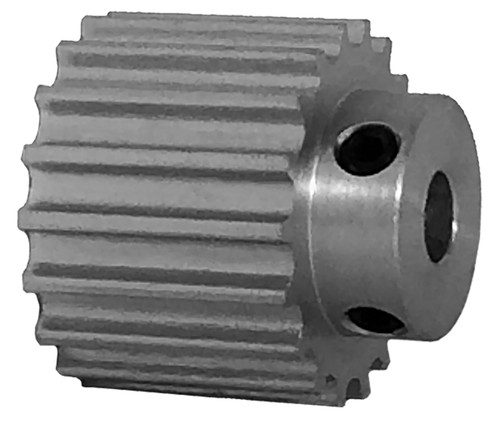

18-5M15-6A3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 18-5M15-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 18-5M15-6A3
Teeth 18
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.083
Face Width (in) 0.781
Overall Length (in) 1.032
Hub Diameter (in) 0.687
Min. Bore (in) 0.250
Unit System Inch
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference A 6A25-018NF1508, A6A25-018NF1508, PT018G08L15N
Set Screw Quantity 2
