18-5M15-6FA6, Timing Pulley

18-5M15-6FA6

Click to Enlarge

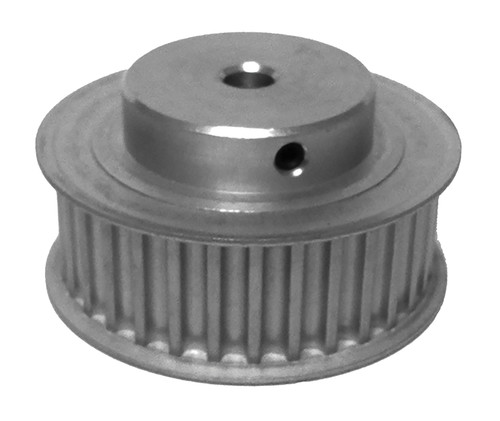

18-5M15-6FA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 18-5M15-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	18-5M15-6FA6
Teeth	18
Tooth Style	HTD5mm
For Belt Width (mm)	15.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.500
Bore Description	1/2 Inch Finished Bore
Pitch Diameter (in)	1.128
Outside Diameter (in)	1.083
Flange Diameter (in)	1.250
Face Width (in)	0.780
Overall Length (in)	1.025
Hub Diameter (in)	0.687
Min. Bore (in)	0.5
Unit System	Inch
P.D. (mm)	29.00
O.D. (mm)	27.50
MOQ	1
Weight (lb)	0.06
Part Number Cross Reference	18-5M15-6FA6, 18-5M15-6FA6
Set Screw Quantity	2
