19-2P09-6CA3, Timing Pulley

19-2P09-6CA3

Click to Enlarge

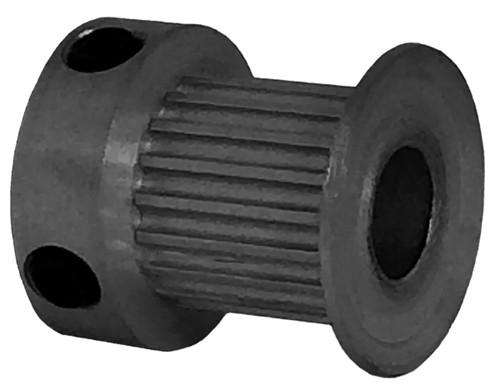

19-2P09-6CA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 19-2P09-6CA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	19-2P09-6CA3
Teeth	19
Tooth Style	2P
For Belt Width (mm)	9.00
Type	6C
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.476
Outside Diameter (in)	0.456
Flange Diameter (in)	0.635
Face Width (in)	0.453
Overall Length (in)	0.687
Hub Diameter (in)	0.635
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.410
Unit System	Inch
Belt Width (mm)	10.40
P.D. (mm)	12.00
O.D. (mm)	11.60
Flange Diameter (mm)	16.10
Face Width (mm)	13.10
Overall Length (mm)	17.50
Hub Diameter (mm)	16.10
MOQ	1
Weight (lb)	0.01
Part Number Cross Reference	A 6A51-019DF0908, A6A51-019DF0908, 2MR-19S-09 X 1/4, TP2A2W9-19, 19-2GT06-6A X 1/4, 19-2P09-6CA3, 19-2P09-6CA3
Set Screw Quantity	2
