19-3M09-6FA3, Timing Pulley

19-3M09-6FA3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 19-3M09-6FA3

Comparable to: A 6A23-019DF0908, A6A23-019DF0908, P19-3M-09AL, 78820015, PT019F08L09T

Click to Enlarge

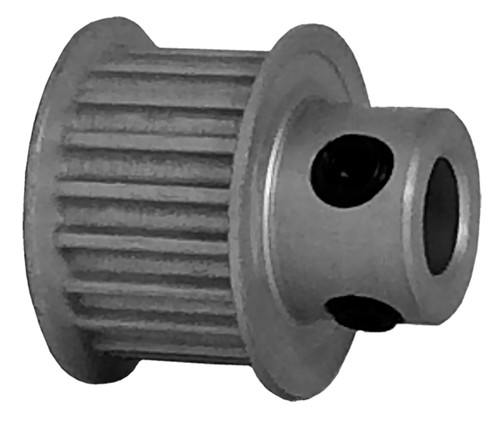

19-3M09-6FA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 19-3M09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 19-3M09-6FA3
Teeth 19
Tooth Style HTD 3mm
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.714
Outside Diameter (in) 0.684
Flange Diameter (in) 0.815
Face Width (in) 0.506
Overall Length (in) 0.812
Hub Diameter (in) 0.468
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.400
Unit System Inch
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A23-019DF0908, A6A23-019DF0908, P19-3M-09AL, 78820015, PT019F08L09T
Set Screw Quantity 2
