19-5P09-6FA3 Powerhouse™ Pulleys

19-5P09-6FA3, P19-5MGT-09AL, 78450919

Product Details for 19-5P09-6FA3

Comparable to: 19-5P09-6FA3, P19-5MGT-09AL, 78450919

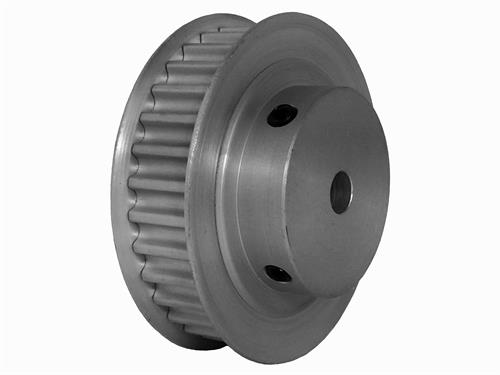

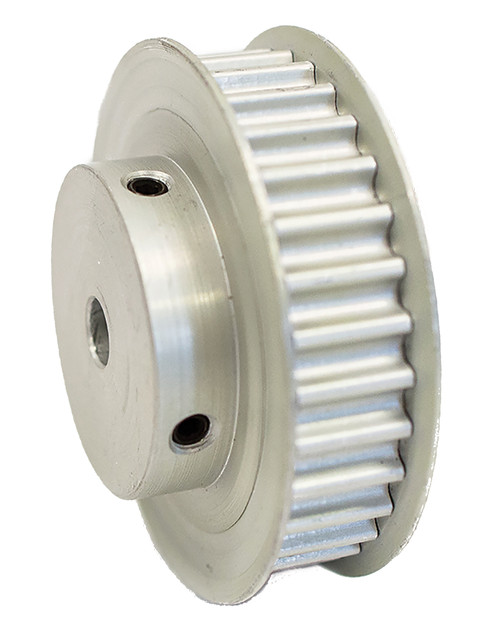

19-5P09-6FA3, Timing Pulley, Powerhouse, 1/4 Inch Bore, Aluminum

Specifications

Product Number 19-5P09-6FA3
Teeth 19
Tooth Style GT 5mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 1.191
Outside Diameter (in) 1.146
Flange Diameter (in) 1.313
Face Width (in) 0.546
Overall Length (in) 0.796
Hub Diameter (in) 0.750
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.25
Unit System Inch
Weight (lb) 0.06
List Price (1-9 Qty.) (USD) 11.98
Discount Price (10-24 Qty.) (USD) 11.08
Discount Price (25-49 Qty.) (USD) 9.58
Discount Price (50-99 Qty.) (USD) 8.39
Discount Price (100-249 Qty.) (USD) 7.49
Part Number Cross Reference 19-5P09-6FA3, P19-5MGT-09AL, 78450919

Documentation

Download Catalog 2015_BBMAN_CATALOG_136.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 19-5P09-6FA3_REACH_cert
RoHS Certification 19-5P09-6FA3_RoHS_cert
