19H300-6FS8, Timing Pulley

19H300-6FS8 - Steel Imperial Pitch Pulleys

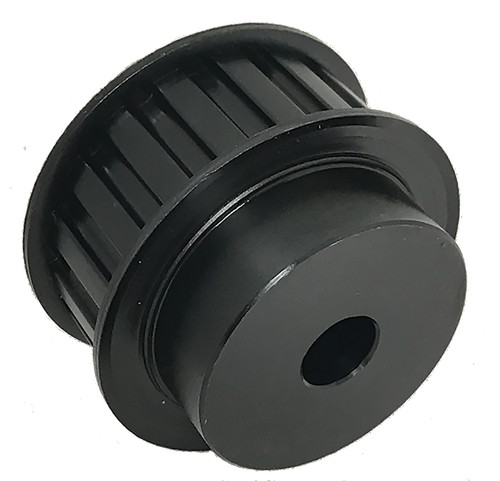

19H300-6FS8

Click to Enlarge

19H300-6FS8, Timing Pulley, Steel, Black Oxide

Learn more about 19H300-6FS8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 19H300-6FS8
Teeth 19
Tooth Style H
For Belt Width (in) 3.0000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 3/4 Inch Minimum Plain Bore
Pitch Diameter (in) 3.024
Outside Diameter (in) 2.970
Flange Diameter (in) 3.256
Face Width (in) 3.375
Overall Length (in) 4.062
Hub Diameter (in) 2.375
Min. Bore (in) 0.750
Pulley Belt Width (in) 3.125
Unit System Inch
P.D. (mm) 77.00
O.D. (mm) 75.40
MOQ 1
Weight (lb) 6.16
Part Number Cross Reference PB19H300, 19HB300, 19H300-3/4, 20181935, 114366, 19H300, 19H300MPB, P19H300, M19H300, 19H300-6FS8
