19T5-PS140A, Timing Pulley Stock

19T5-PS140A, A6A34M019T14, A 6A34M019T14, 19T5-PS-140

Product Details for 19T5-PS140A

Comparable to: A 6A34M019T14, A6A34M019T14, 19T5-PS-140, T519

Click to Enlarge

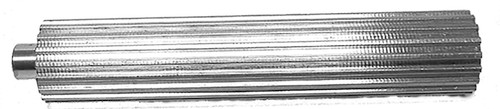

19T5-PS140A, Timing Pulley Stock, Aluminum

Learn more about 19T5-PS140A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 19T5-PS140A
Teeth 19
Tooth Style T5mm
Material Aluminum
Pitch Diameter (in) 1.197
Outside Diameter (in) 1.157
Overall Length (in) 6.300
Unit System Metric
Min. Usable Length (in) 5.500
P.D. (mm) 30.40
O.D. (mm) 29.40
Min. Usable Length (mm) 140.00
Overall Length (mm) 165.00
MOQ 1
Weight (lb) 0.58
Part Number Cross Reference A 6A34M019T14, A6A34M019T14, 19T5-PS-140, T519
Shank Length (in) 0.8000
