1C120SF, V-Belt Pulley

1C120SF, QD1C12

1C120SF

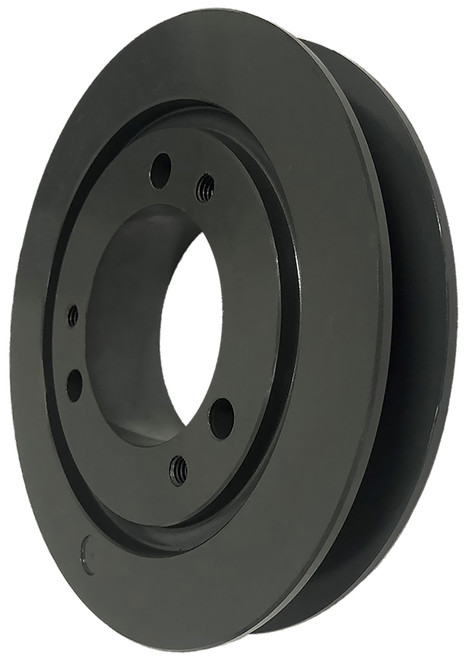

1C120SF, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 1C120SF to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 1C120SF
Type D-3
Material Cast Iron
Bore Type QD
Bore Description Bored for SF Bushing
Outside Diameter (in) 12.400
Face Width (in) 1.250
Overall Length (in) 2.063
Min. Bore (in) 0.5
Unit System Inch
Bushing SF
L (in) 2.0625
MOQ 1
Sheave Type C
Weight (lb) 18.60
Part Number Cross Reference QD1C12.0, 1C120SF, 12.0-1C-SF PULLEY, 20178955, 1C120-SF SHEAVE, 1201C, 1C120, 1C120SF, 455782, 1C120SF
Grooves 1
