20-2P09-6FA2, Timing Pulley

20-2P09-6FA2

Click to Enlarge

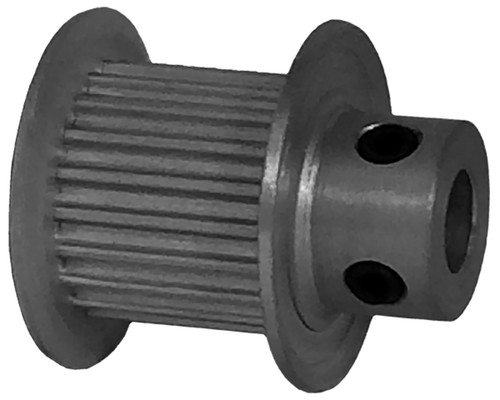

20-2P09-6FA2, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-2P09-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	20-2P09-6FA2
Teeth	20
Tooth Style	2P
For Belt Width (mm)	9.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.188
Bore Description	3/16 Inch Finished Bore
Pitch Diameter (in)	0.501
Outside Diameter (in)	0.481
Flange Diameter (in)	0.685
Face Width (in)	0.514
Overall Length (in)	0.750
Hub Diameter (in)	0.364
Min. Bore (in)	0.1875
Pulley Belt Width (in)	0.410
Unit System	Inch
Belt Width (mm)	10.40
P.D. (mm)	13.00
O.D. (mm)	12.20
Flange Diameter (mm)	17.40
Face Width (mm)	13.10
Overall Length (mm)	19.10
Hub Diameter (mm)	9.20
MOQ	1
Weight (lb)	0.00
Part Number Cross Reference	A 6A51-020DF0906, A6A51-020DF0906, 2MR-20S-09, 2MR-20S-09, TP2A3W9-20, 20-2GT06-1A X 3/16, 20-2P09-6FA2, 20-2P09-6FA2
Set Screw Quantity	2
