20-3P09-6FA2, Timing Pulley

20-3P09-6FA2 - Aluminum Powerhouse® Pulleys

Product Details for 20-3P09-6FA2

Comparable to: A 6A53-020DF0906, A6A53-020DF0906, 20-3GT09-1A X 3/16

Click to Enlarge

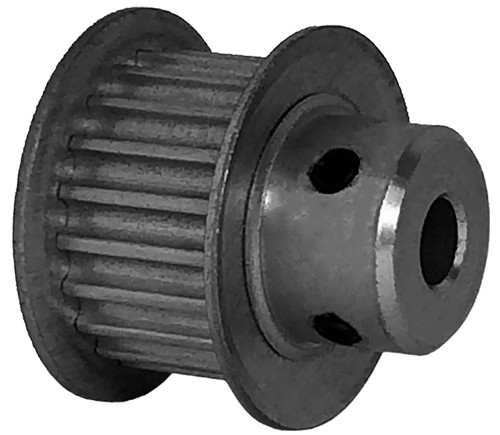

20-3P09-6FA2, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-3P09-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20-3P09-6FA2
Teeth 20
Tooth Style 3P
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 3/16 Inch Finished Bore
Pitch Diameter (in) 0.752
Outside Diameter (in) 0.722
Flange Diameter (in) 0.895
Face Width (in) 0.506
Overall Length (in) 0.812
Hub Diameter (in) 0.500
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.400
Unit System Inch
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference A 6A53-020DF0906, A6A53-020DF0906, 20-3GT09-1A X 3/16
Set Screw Quantity 2
