20-3P09-6FA3, Timing Pulley

20-3P09-6FA3

Click to Enlarge

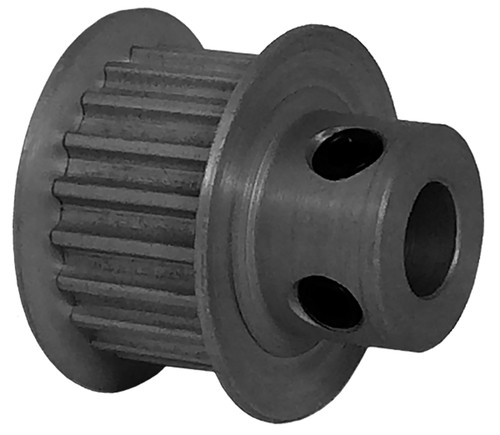

20-3P09-6FA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-3P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	20-3P09-6FA3
Teeth	20
Tooth Style	3P
For Belt Width (mm)	9.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.752
Outside Diameter (in)	0.722
Flange Diameter (in)	0.895
Face Width (in)	0.506
Overall Length (in)	0.812
Hub Diameter (in)	0.500
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.400
Unit System	Inch
P.D. (mm)	19.00
O.D. (mm)	18.30
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A 6A53-020DF0908, A6A53-020DF0908, 3MR-20S-09, 3MR-20S-09-6F, TP3A3W9-20, 20-3GT09-1A X 1/4, 20-3P09-6FA3, 20-3P09-6FA3
Set Screw Quantity	2
