20-5M15-6FA3, Timing Pulley

20-5M15-6FA3 - Aluminum Powerhouse®HTD® Pulleys

20-5M15-6FA3

Click to Enlarge

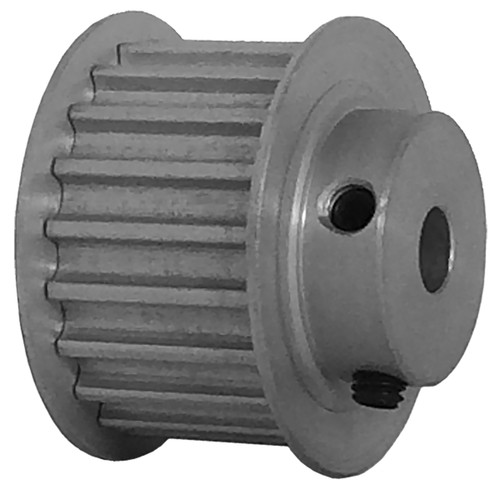

20-5M15-6FA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-5M15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20-5M15-6FA3
Teeth 20
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.253
Outside Diameter (in) 1.208
Flange Diameter (in) 1.375
Face Width (in) 0.780
Overall Length (in) 1.025
Hub Diameter (in) 0.812
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.650
Unit System Inch
P.D. (mm) 32.00
O.D. (mm) 30.70
MOQ 1
Weight (lb) 0.09
Part Number Cross Reference A 6A25-020DF1508, A6A25-020DF1508, P20-5M-15AL, 20M5-L015M-6F, PT020G08L15T, 20-5M-15 X 1/4, 20-5M15-6FA3, 20-5M15-6FA3
Set Screw Quantity 2

Comparable to: A 6A25-020DF1508, A6A25-020DF1508, P20-5M-15AL, 20M5-L015M-6F, PT020G08L15T, 20-5M-15 X 1/4, 20-5M15-6FA3, 20-5M15-6FA3
