20-5M15M6A8, Timing Pulley

20-5M15M6A8 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 20-5M15M6A8

Comparable to: A 6A25M020NF1508, A6A25M020NF1508

Click to Enlarge

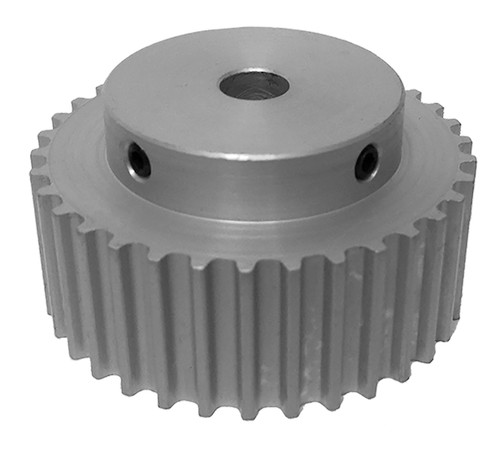

20-5M15M6A8, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-5M15M6A8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20-5M15M6A8
Teeth 20
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 8.00
Pulley Belt Width (mm) 15.00
Unit System Metric
P.D. (mm) 31.80
O.D. (mm) 30.70
Face Width (mm) 19.80
Overall Length (mm) 26.20
Hub Diameter (mm) 20.60
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference A 6A25M020NF1508, A6A25M020NF1508
Set Screw Quantity 2
