20L050-6FA6, Timing Pulley

20L050-6FA6 - Aluminum Imperial Pitch Pulleys

20L050-6FA6

Click to Enlarge

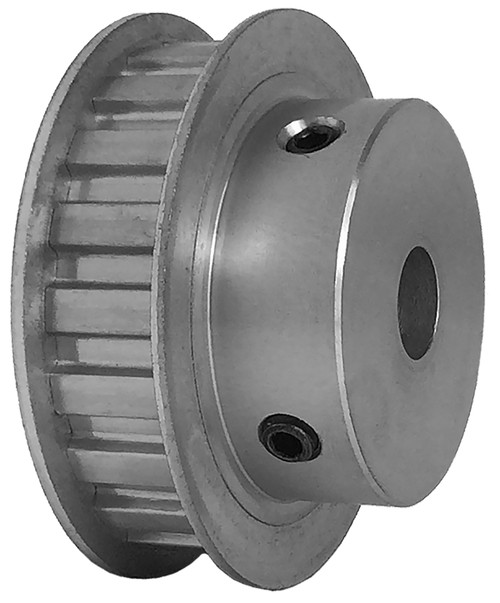

20L050-6FA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20L050-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20L050-6FA6
Teeth 20
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 2.387
Outside Diameter (in) 2.357
Flange Diameter (in) 2.625
Face Width (in) 0.719
Overall Length (in) 1.312
Hub Diameter (in) 1.812
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.560
Unit System Inch
P.D. (mm) 61.00
O.D. (mm) 59.90
MOQ 1
Weight (lb) 0.48
Part Number Cross Reference A 6A4-20DF05016, A6A4-20DF05016, PT020J16L08T, 20L050-1A X 1/2, 21L050, 20L050MPB, 86237829, M20L050, 20L050-6FA6
Set Screw Quantity 2

Comparable to: A 6A4-20DF05016, A6A4-20DF05016, PT020J16L08T, 20L050-1A X 1/2, 21L050, 20L050MPB, 86237829, M20L050, 20L050-6FA6

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
