20L100-6FS6, Timing Pulley

20L100-6FS6 - Steel Imperial Pitch Pulleys

20L100-6FS6

Click to Enlarge

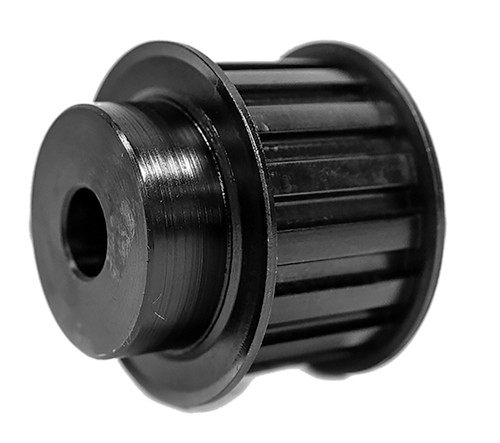

20L100-6FS6, Timing Pulley, Steel, Black Oxide

Learn more about 20L100-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20L100-6FS6
Teeth 20
Tooth Style L
For Belt Width (in) 1.0000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.500
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.387
Outside Diameter (in) 2.357
Flange Diameter (in) 2.625
Face Width (in) 1.250
Overall Length (in) 1.750
Hub Diameter (in) 1.687
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.070
Unit System Inch
P.D. (mm) 61.00
O.D. (mm) 59.90
MOQ 1
Weight (lb) 1.74
Part Number Cross Reference 20L100, 20LB100, 20L100 X 1/2 MPB, 20L100MPB, P20L100, P20L100-PB, 20L100-6FS6, 114326, 20L100-6FS6
