Product Details for 20MP012-6CA3

Comparable to: 20MP012-6CA3, A 6N16-020DF1208, A6N16-020DF1208, 20MP-012 1/4 6FC, 1375K

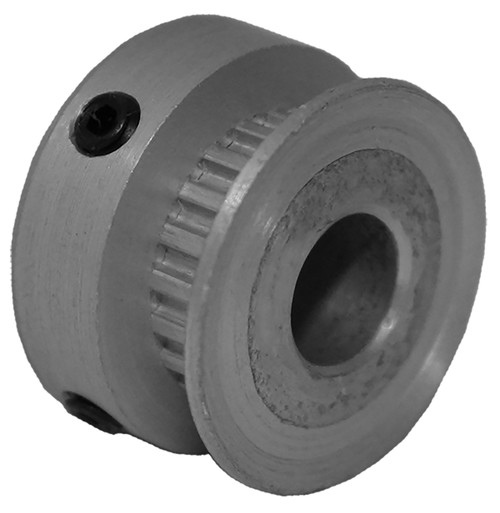

20MP012-6CA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

B&B Manufacturing provides custom 20MP012-6CA3 Aluminum Imperial Pitch Pulleys for the diverse range of industies we serve. Request a quote today!

Specifications

Product Number 20MP012-6CA3
Teeth 20
Tooth Style MXL
For Belt Width (in) 0.125
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.509
Outside Diameter (in) 0.489
Flange Diameter (in) 0.685
Face Width (in) 0.208
Overall Length (in) 0.438
Hub Diameter (in) 0.685
Set Screw 2 x 4-40 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.160
Unit System Inch
Max. Bore (in) 0.435
Weight (lb) 0.02
Part Number Cross Reference 20MP012-6CA3, A 6N16-020DF1208, A6N16-020DF1208, 20MP-012 1/4 6FC, 1375K
