20MP025-6CA3, Timing Pulley

20MP025-6CA3 - Aluminum Imperial Pitch Pulleys

20MP025-6CA3

Click to Enlarge

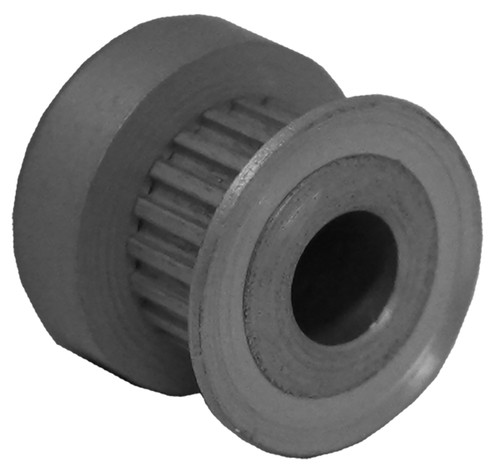

20MP025-6CA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20MP025-6CA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20MP025-6CA3
Teeth 20
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.509
Outside Diameter (in) 0.489
Flange Diameter (in) 0.685
Face Width (in) 0.337
Overall Length (in) 0.563
Hub Diameter (in) 0.685
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.290
Unit System Inch
P.D. (mm) 13.00
O.D. (mm) 12.40
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A16-020DF2508, A6A16-020DF2508, 20MP-025 1/4 6FC, 20MXL025-6A X 1/4, 1375K39, 20MP025-6CA3
Set Screw Quantity 2
