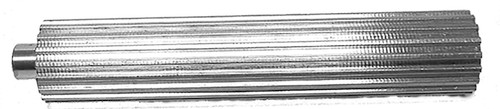

20T5-PS160A, Timing Pulley Stock

20T5-PS160A

20T5-PS160A, Timing Pulley Stock, Aluminum

Learn more about 20T5-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	20T5-PS160A
Teeth	20
Tooth Style	T5mm
Material	Aluminum
Pitch Diameter (in)	1.260
Outside Diameter (in)	1.220
Overall Length (in)	7.100
Unit System	Metric
Min. Usable Length (in)	6.300
P.D. (mm)	32.00
O.D. (mm)	31.00
Min. Usable Length (mm)	160.00
Overall Length (mm)	185.00
MOQ	1
Weight (lb)	0.73
Part Number Cross Reference	A 6A34M020T16, A6A34M020T16, T5-20S-PS-160A, 20T5-PS-160A, 20-5M-P-8A, 20T5-PS160A, 20T5-PS160A
Shank Length (in)	0.8000
