20XH300-6FS10, Timing Pulley

20XH300-6FS10

Click to Enlarge

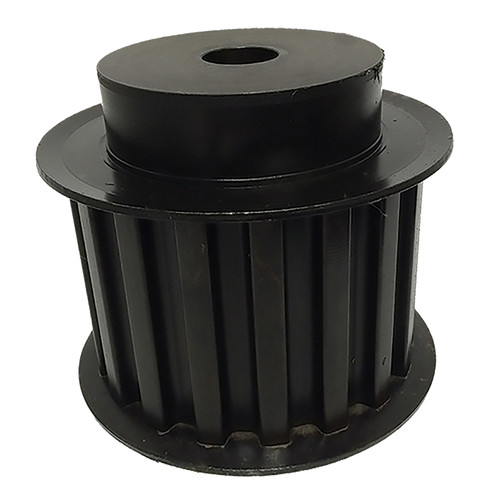

20XH300-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 20XH300-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	20XH300-6FS10
Teeth	20
Tooth Style	XH
For Belt Width (in)	3.0000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	5.570
Outside Diameter (in)	5.460
Flange Diameter (in)	6.125
Face Width (in)	3.625
Overall Length (in)	4.625
Hub Diameter (in)	4.125
Min. Bore (in)	1
Unit System	Inch
P.D. (mm)	142.00
O.D. (mm)	138.70
MOQ	1
Weight (lb)	23.04
Part Number Cross Reference	20XH300, 20XHB300, P20XH300, 20XH300-6FS10, 20XH300-6FS10
